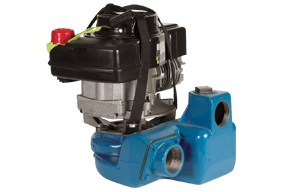

VSP SERIES: Vertical Self-Priming

Introducing the Industry's first vertical, self-priming pump

Quality Features

  • Rugged Cast Body
  • Light Weight
  • H.D. Bearing Pedestal
  • Stainless Steel Shaft Sleeve
  • Mechanical Seal
  • Built-In Check Valve

Special Options:

  • Steel Base
  • Viton Seals for high temperature up to 400F
  • Sturdy, molded carrying handle
  • Enhanced unit with 45% greater horsepower. This 5.5hp unit is ideal for special applications such as slurries
Specifications and Selection Chart
MODEL
ENGINE
PORTS
MAX
GPM
MAXIMUM
SPHERICAL
SOLIDS
SHIPPING DIMS
WEIGHT
DRY LBS
HP
MODEL
SUC
DIS
HEAD LEFT
L
W
H
VSP Series | 3 4/5 HP
VSP-465-IN
3 4/5
TECUMSEH
2"
2"
220 75' 25' 1"
16.25
15.25
14.91
60
Specifications are subject to change without notice.
