unitra inc

SPE AL SERIES:

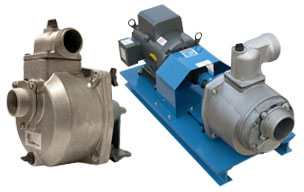

Close Coupled Electric Motor Drive

Quality Features

  • U.S. MADE Rugged Aluminum Body
  • Light Weight
  • Standard NEMA Motors
  • S. S. Shaft Sleeve
  • Self-Lubricated Shaft Seal
  • Built-In Check Valve

Servicing Accessibility
O-ring gaskets for positive seal & ease of service: Simply Remove Motor Without Disturbing Plumbing to Replace Impeller, Seal or Gasket
Specifications and Selection Chart(s)
MODEL
TYPE
HP
CONSTRUCTION
IMPELLER DIAMETER
PORTS
SHAFT SEAL
SUC
DIS
4 - 13 HP | 3/4" - 1 1/2" DISCHARGE
SPE AL 50
 Self-Priming
Centrifugal for
Pumping Dirty Water
4 HP
Aluminum
2"
3/4"
Female
Thread
 Mechanical
Seal
SPE AL 70
6-9 HP
3"
1"
SPE AL 100
11-13 HP
4"
1 1/2"
Specifications are subject to change without notice
Other voltages are available, please specify
Available in Bronze Fitted
Specifications are subject to change without notice.
