unitra inc

TSP SERIES: Trash Handling Pumps

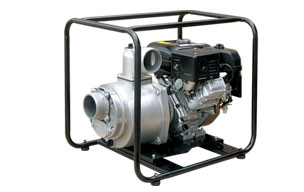

Unitra's "TSP" Series pumps are close-coupled, engine-driven, contractor pumps that are specifically designed with excellent solids-handling capabilities.

Quality Features

  • Die-cast aluminum pump casing and motor support and durable cast-iron volutes and impellers
  • Improved suction results in faster priming and excellent performance
  • Built-in check valve helps retain prime and eliminate backglow
  • High quality, self-lubricating silicon carbide shaft seal (except TSP 504) with corrosion-resistant shaft sleeve.
  • Included patented suction-strainer helps ensure trouble-free performance
  • Full roll cage with anti-vibration and anti-creep mount is standard for TSP 504
  • available factory options include roll cage, molded suction/discharge hose connectors and wheels kits

*please contact factory, sales representative, or your distributor for additional information.

Specifications and Selection Chart(s)
MODEL
PORTS
ENGINE
MAX
GPM
MAXIMUM SPHERICAL
SOLIDS
STANDING
MOUNTING
SHIPPING
DIMENSIONS (IN)
WEIGHT
(LBS)
SUC
DIS
HP
MODEL
HEAD LIFT
L
W
H
IN
6-9 HP | 3" DISCHARGE
TSP-504-R
2"
2"
4.5
Subaru
150
67'
25'
1"
Handle
22
18
19 3/4
60
TSP-506-R
2"
2"
6
Subaru
162
108'
25'
1"
Roll-Cage
22
18
19 3/4
80
TSP-505-HO
2"
2"
5.5
Honda GX-120
162
108'
25'
1"
Roll-Cage
22
18
19 3/4
80
TSP-809-R
3"
3"
9
Subaru
377
98'
25'
1 1/2"
Roll-Cage
24 3/4
22
23
120
TSP-808-HO
3"
3"
8
Honda GX-120
377
98'
25'
1 1/2"
Roll-Cage
24 3/4
22
23
123
TSP-1013-R
4"
4"
13
Subaru
750
90'
25'
2"
Roll-Cage
29 1/2
22
24
138
TSP-1013-HO
4"
4"
13
Honda GX-120
750
90'
25'
2"
Roll-Cage
29 1/2
22
24
139
Specifications are subject to change without notice.
